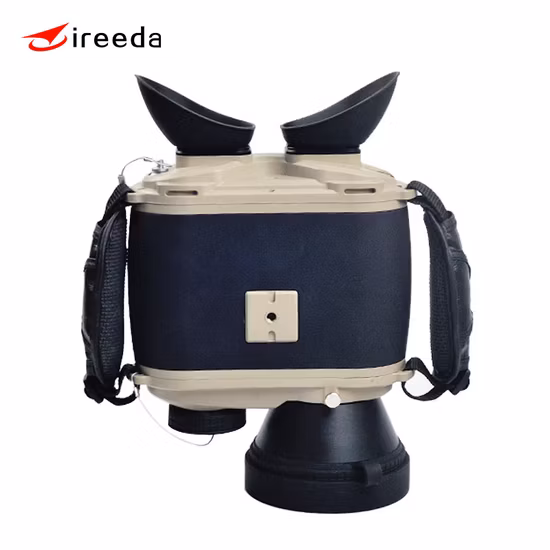

Thermal Imaging Infrared Handheld Infrared IR Night Vision Device Thermal Imaging Binocular

Basic Info

Model NO.	6100B
Operation Principle	Infrared Night Vision
Shell Material	Customized
Customized	Customized

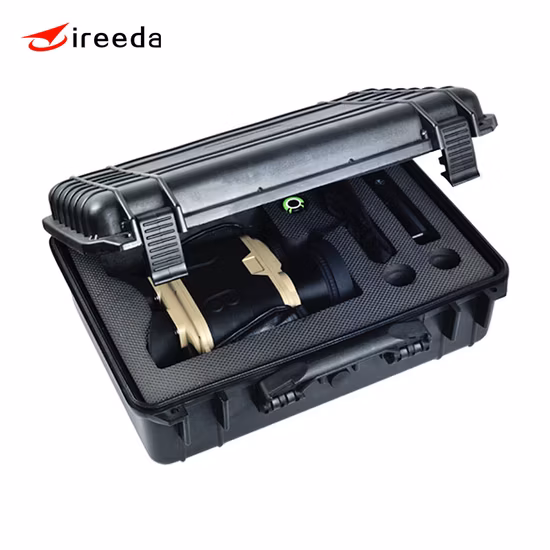

Transport Package	Safety Box
Specification	Customized
Trademark	DA
Origin	China
Production Capacity	500 Piece/Month

Product Description

Product Description

Product Parameters

Thermal Detector
Detector Type	Microbolometer
Detector resolition	640*480px
NETD	<80mk
Spectral Range	8-14um
Pixel Pitch	17um
Frame Rate	50Hz
Lens System
Focal Length	100mm/F1.2
FOV	6.2° x 4.7°
Focusing Range	8m~∞
Brightness/contrast	Automatically/ Manually
Image Processing
Display	800*600 OLED
Polarity	White Hot/ Black Hot/ Muitiple Color Modes
Digital Zoom	X2, X4
Video Format	MPEG4
Record storage and Output	Record Format 640X480; Built-in 16G memory Card.
Interface
Interface	Video Output, USD2.0
Installation Interface	1/4' Standard Tripod Interface.
Power Supply
Battery Type	26650 Rechaegeable Battery [email protected]
Battery Life	Continuous Working Time after charging>6 hours
Power Consumption	<3.0W
Range
Detection Range	For Man: 3000m For Vehicle: 4000m
Recognition Range	For Man: 1500m For Vehicle: 2500m
Environmental Rarameters
Working Temp	-30 to +60ºC
Storage Temp	-40 to +70ºC
Protection	IP66
Humidity	5%-95%
Physical Parameters
Weight	<1300(Including Batteries)
Dismensions	220mm*175mm*68mm

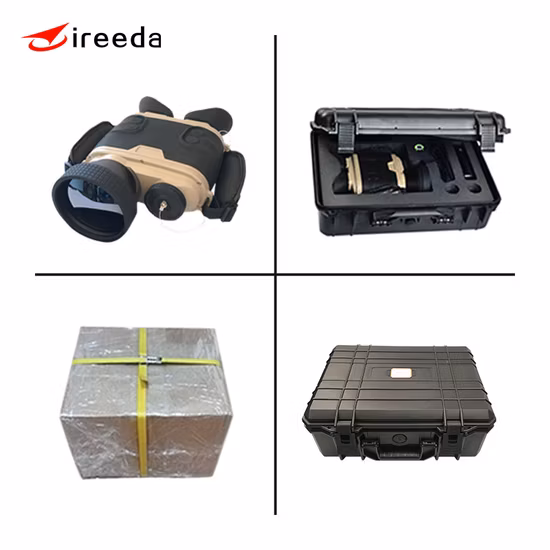

Packaging & Shipping
