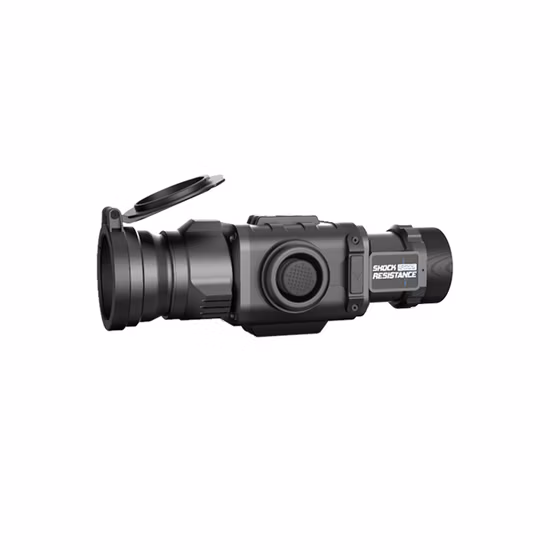

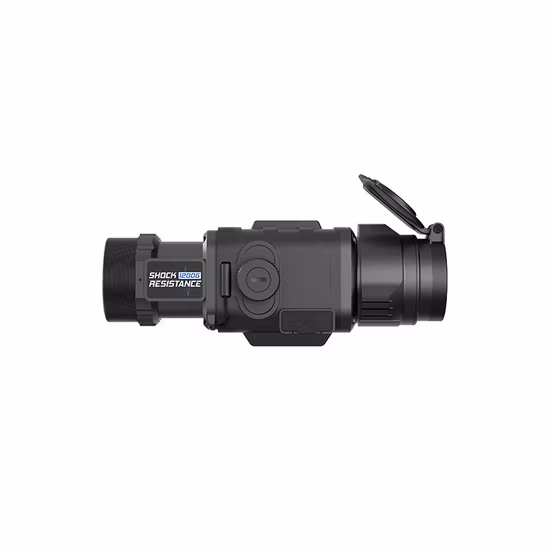

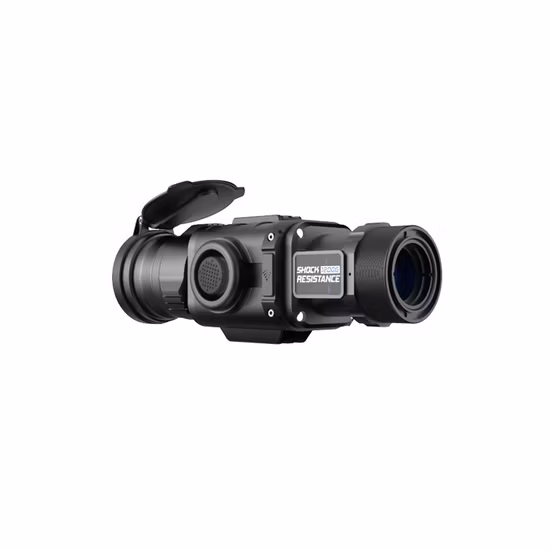

Long Detection Identification Capacity Infrared Thermal Imager Clip on with WiFi

Basic Info

Model NO.	Nightseer C
Customized	Customized
Resolution	384*288
Pixel Size	17um
Lens	35/50mm
Zoom	2X/Pip/4X
WiFi	Yes
Video Recorder	Yes
Transport Package	Safety Export Packing
Specification	335/350
Trademark	Nightseer
Origin	China
HS Code	903149
Production Capacity	50000 PCS/Year

Product Description

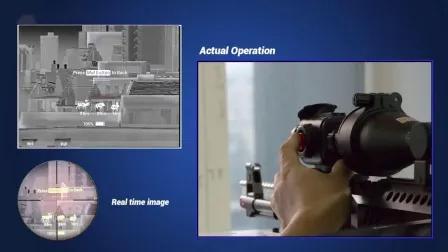

Long Detection Identification Capacity Infrared Thermal Imager Clip On with WIFIThe Nightseer 335C and Nightseer 350C convert your existing day scope to thermal and provides excellent target acquisition and aiming capabilities for the demanding sports shooter, varmint hunter, law enforcement, or security personnel. The Nightseer clip-on simply mounts in front of your own standard day optical sight, allows the user to maintain consistent eye relief and shooting position, and because the user views his own day scope's reticle which he familiar with, no training is required.Features Highly sensitive thermal imaging sensorHighly sensitive thermal imaging sensor ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imager.Night-time shooting advantagesUsing NightSeer includes several benefits over night hunting with traditional optics or even thermal or night vision devices. Attaching NightSeer to a traditional scope delivers the same creature comforts of shooting with day optics you are accustomed to, including your existing reticle and eye relief. The NightSeer even allows you to continue utilizing your scope's variable magnification.Compatible with various day opticsThe NightSeer is designed to turn most traditional scopes, with objective lens diameters of 36 mm - 56 mm, into thermal imaging devices without effecting point-of-impact. Attach and detach the NightSeer in seconds, without losing zero, using the NightSeer's quick-release bayonet mount.Precise alignment Precision optical alignment is essential for any front sight system to work properly. All NightSeers are adjusted on the laboratory test equipment with accuracy from 0.1 mrad to 0.3 mrad. The manufacturing process of the NightSeers ensures the shooting precision tolerance within 3 to 7 cm at 100 m.Long detection rangePowerful objective lens in combination with professional grade thermal imaging sensor provides exceptional detection capabilities. A standard 1.8m tall object can be detected at a 1800 m distance in complete darkness.WIfi and Bulit-in video recordingThis feature gives you the opportunity to capture your experiences and enjoy high-resolution images. Image and video content is stored internally and can easily be transferred to PC/laptop via wired connection or Wi-Fi.Never missing a chance to catch your moment on video.ApplicationSearch and Rescue Camping and Boating Patrolling Aviation Land, Air and Sea Surveillance Wildlife Observation Port and Border Security Wildlife Management

Technical Data Sheet of Thermal Imager NightSeer Series
	NS335-C	NS350-C
Microbolometer
Type	Uncooled
Resolution,pixels	384×288
Frame rate,Hz	50
Pixel size,um	17
Optical Characteristics
Objective lens	35mm,F/1.1	50mm,F/1.1
Magnification,X	1	1
Zoom	2x/PIP/4x	2x/PIP/4x
FOV	10.6°×8.0°	7.4°×5.6°
Close-up range,m	5	5
Display
Type	OLED
Resolution,pixel	1024×768
Detection range (1.7m target)	1350	1800
Recognition range (1.7m target)	450	600
Detection range (2.3m target)	1800	2400
Recognition range (2.3m target)	600	800
Power Supply
Battery type	2XCR123
Power supply	3.6~7.2v
External power supply	5v USB
Operation time on a battery set(standard version),hrs	5
Operation Time on external battery pack(standard version),hrs(13000mAh)	44
Video Recorder
Video/Photo format	avi/jpg
Built-in memory	32G
Wifi Channel
Frequency	2.4
Reception range,m	15
Physical Parameters
Degree of protection	IP66
Operation temperature	-20ºC~+50ºC
Storage temperature	-40ºC~+60ºC
Shock and Vibration	1200 G/ms
Weight without batteries,g	490	505
Dimension,mm	170×61×67	187×65×67

FAQ
Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in thermal imaging devices.
OEM & ODM service are available. Welcome to visit us.

Q : Can we be your wholesaler or distributor ?
Yes, welcome.And we will offer more reasonable price for all wholesaler, distributor, dealer, and reseller .

Q:What certificate do you have?
A:We have passed CE/ROHS/ ISO9001/SGS.And have applied design patent.

Q: Can I order one set for sample to test the quality?
A: Yes, We recommend checking the sample before order. Pls contact us for detailed price.

Q: What is your MOQ?
A: To start our cooperation, one set is acceptable.

Q: What is your payment terms?
A: Wee accept T/T bank trasnfer , western union, paypal.

Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.

Q: How about the package?
A: Packaging, We usually use carton box for our products, we could also do any packing according to the customers's request, just please kindly let us know your idea!

Q : How about delivery ?
A: Usually we sent goods by DHL, UPS, TNT, and EMS for small package and by Air or by Sea for big volume.

Q: Do you have a warranty?
A: Yes, we have the warranty of 24 months.
